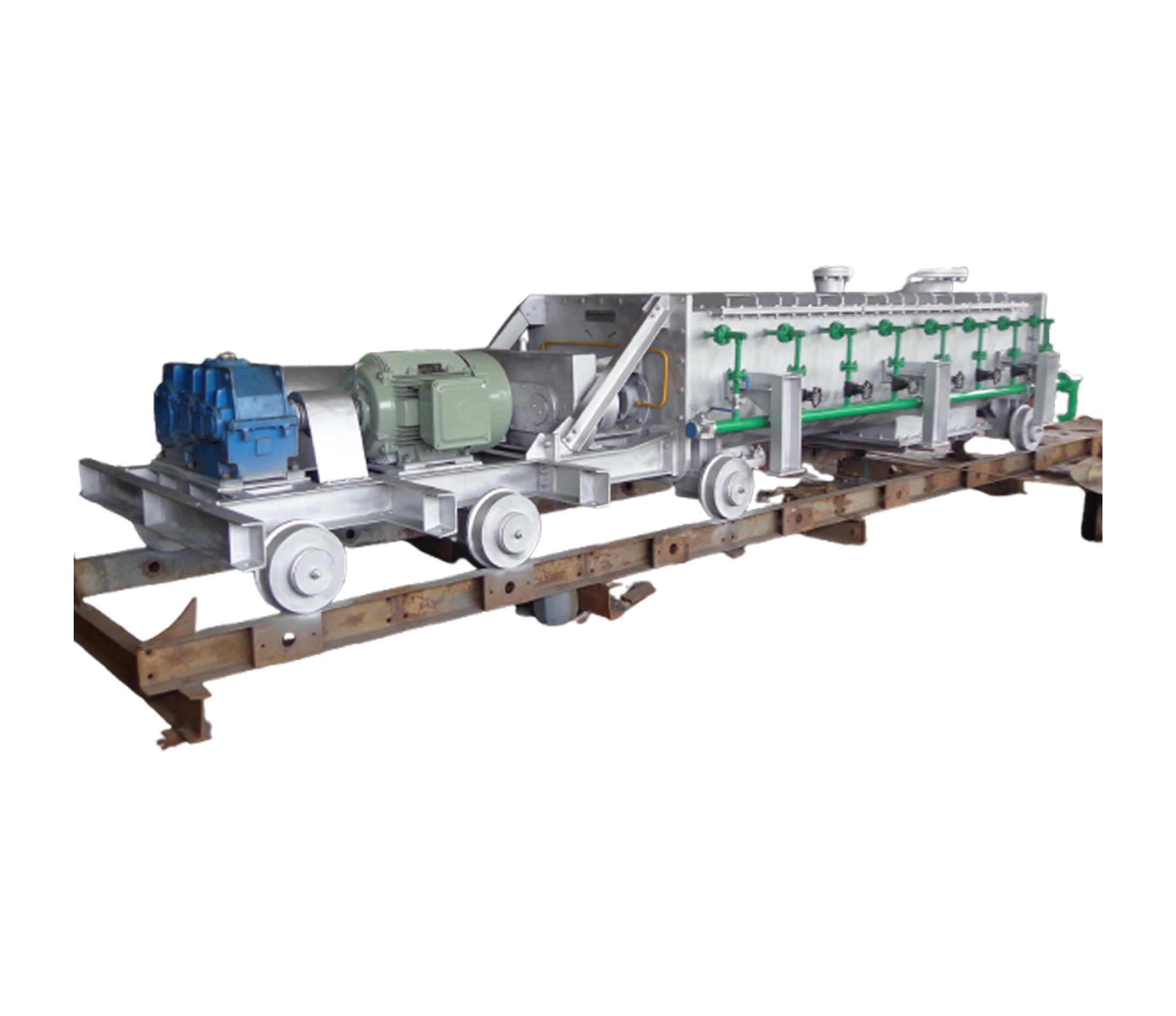

Pugmills

These are paddle type mixers for handling powder materials along with water addition.

Pugmills are used as secondary pollution control equipment where the collected dust is to be conveyed and discharged with water addition. For capacity upto 20-30 TPH single screw Pugmill is recommended. For larger capacity twin screw Pugmills are preferred.

Pugmills differ with screw conveyors in the following manner:

The mixing element is one or two shafts with paddles bolted on it in a spiral form.
RPM of paddle is high as the purpose is mixing and conveying.
Water spraying system is provided to achieve the desired moisture in the dust.
In Twin screw Pugmill, the flights overlap so that no portion of material remain unmixed.
The equipment along with all accessories is mounted on a common base frame.

Capacity	100 TPH or more
Optimum length	6 m
Trough type	U- type
Trough liner	Abrex/ Sailhard/SS
Paddle material	Abrex/SS/Hard faced
Material temp	250° C max
Drive	Motor-Gearbox-Coupling
Shaft seal	Gland packing with provision for nitrogen purging
General MOC	IS -2062
Shaft	En8
Gear	En24

Twin Screw Mixer

Twin Screw mixers are used for solid-solid mixing. These are very much similar to Pugmill except that no water spraying system is required.

Max Capacity	100 TPH
Length	6 m
Trough	U-Type
Max Temp	80°C
Gen MOC	IS 2062/SS
